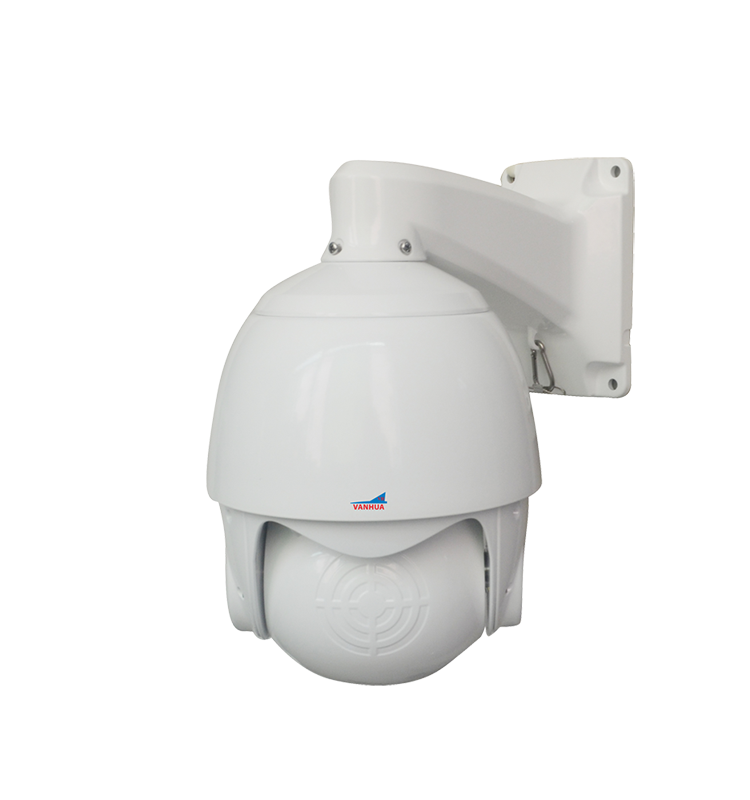

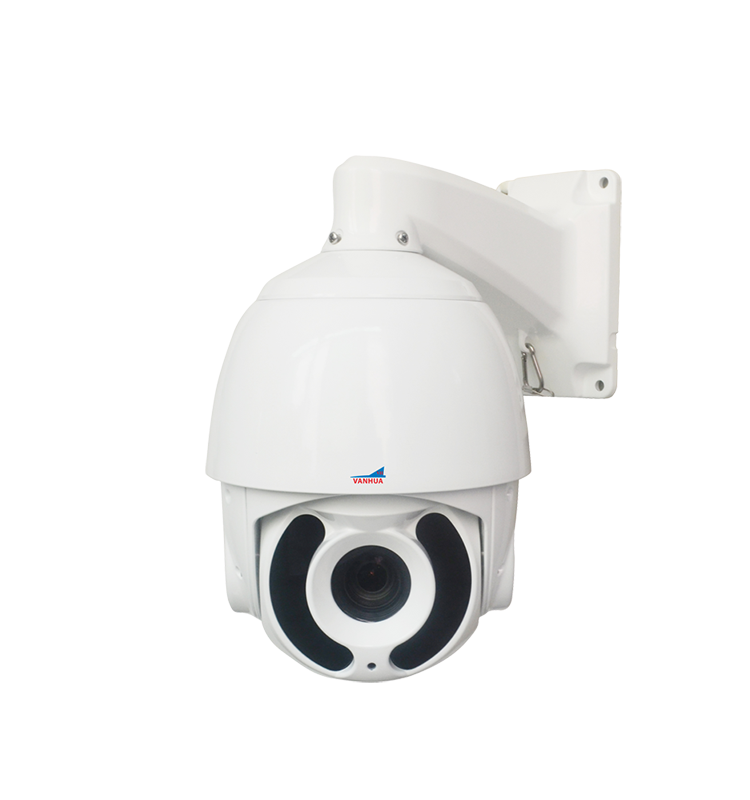

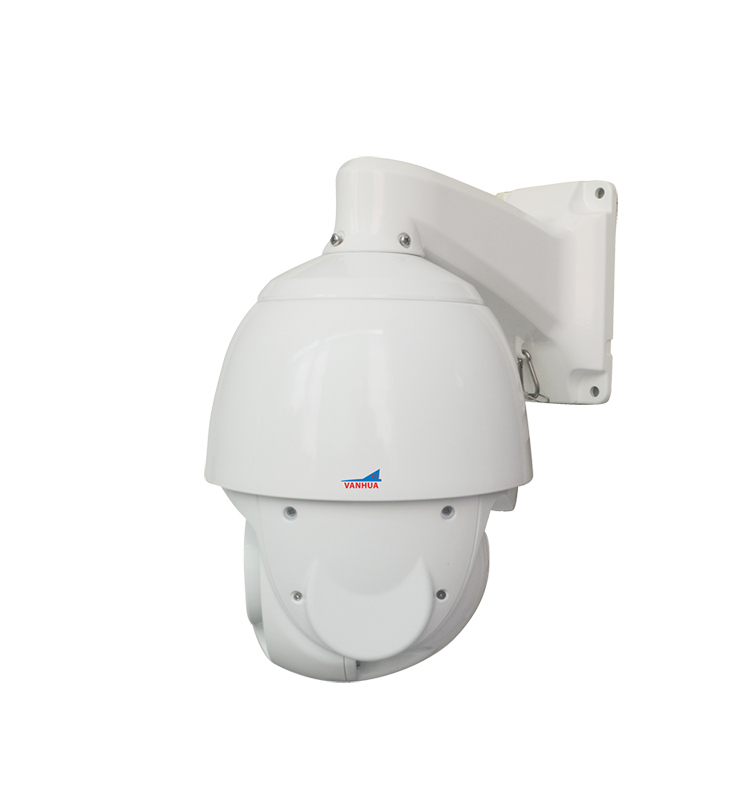

7 inch high speed dome PTZYou are here:HOME >> PRODUCTS >> H.265 PTZ IP Ca... >> 7 inch high spe...
VH-NP-M02
H. 265 high speed 7 inch PTZ IR 150M

1/2.5" 5MP AR0521 CMOS Sensor
H.265 Compression Method
20X (f=4.7mm-94mm) or 36X (f=4.6mm-165mm) Optical Zoom
IR Distance 150M Max
IP66 Outdoor

Enquiry Now

  • We will carefully read your message and reply you as soon as possible.
  • *
  • *
  • * *
  • *
  •
Model No. NP-2020-M02 NP-2020-M02L NP-5020-M02 NP-2036-M02
Camera
Soc Hi3516CV300 Hi3516D Hi3516D Hi3516D
Sensor 1/3"  CMOS 2MP  Sony323 1/2.7"  CMOS 2MP  Sony290 1/2.5" CMOS 5MP AR0521 1/3" CMOS 2MP Panasonic34229
Output Pixel 1920x1080/30fps
1920x1080/25fps
1920x1080/30fps
1920x1080/25fps
2592x1944/15fps
2592x1944/15fps
1920x1080/30fps
1920x1080/25fps
Lens                                             20X f=4.7mm~94mm 36X  4.6mm~165mm
BLC Support
AGC Auto/manual
WB Auto/manual/indoor/outdoor
DNR 2DNR,3DNR
WDR DWDR WDR79dB DWDR WDR79dB
S/N Ratio ≥50dB
Dome
Communications Protocol  TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Software Control IE, CMS, Management Platform, P2P
Mobile View(optional) Android , iPhone
Rotation range Pan:0~360°,Tilt:0~93º
Rotation speed Pan:0~380°/s Tilt:0~90°/s
Auto Flip Horizontal 180º,Vertical 93º
Preset Points 220pcs presetsdwell time 01-60s interval available
A-B scan User programmabel(scan speed 1-64 levels setting available)
Guard Tours 8 groups( Max.16 points, dwell time user selectable)
Pattern Scan 4 pcs(Max 15 minutes.max.512 commands)
Time scheduling Function 6 tasks
PWR On Action Memory/Pattern 1/Tour 1/360° scan/A-B scan/Park 1/None
Park Mode Pattern 1/Tour 1/360° scan/A-B scan/Park 1/None
Park Time 1-60mins setting available
video compression H.264/H.265M-JPEG
audio compression G711, PCM
Operating temperature -40~+60
Operation menu Mutiple languages:English,Italian,Spanish etc.
Power DC12V  4A / (AC24V 3A optional )
Consumption  ≤25W
Lightning Protection Transient voltage 6000V
Related validation IP66,CE,FCC,RoHs
IR parameters
Auto Control IR LED PWM
IR distance 150 meters
LEDs 8 Pcs Array 42Mil IR LED
Support ambient light detection IR illumination on 1-9 grades selectable
