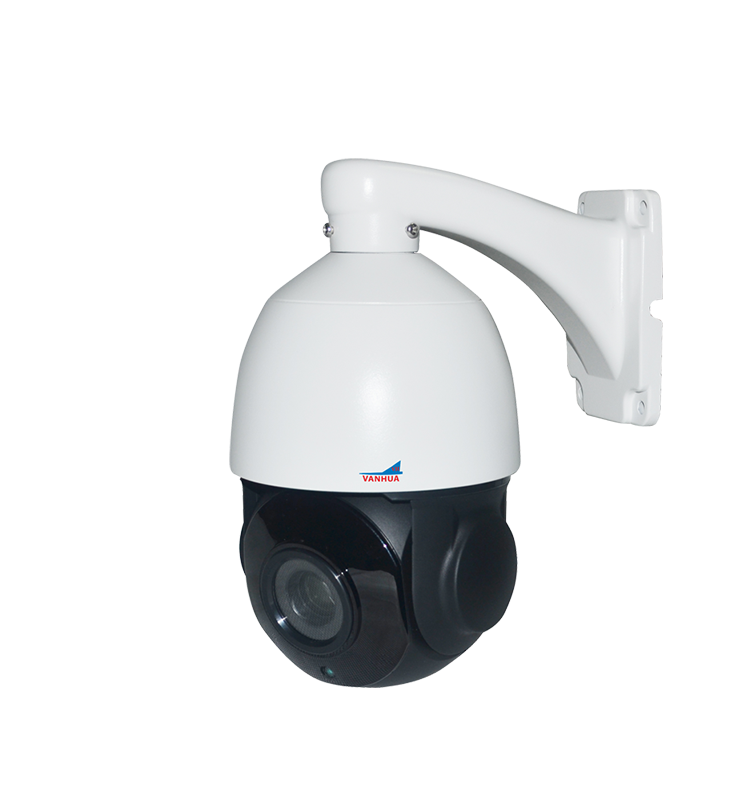

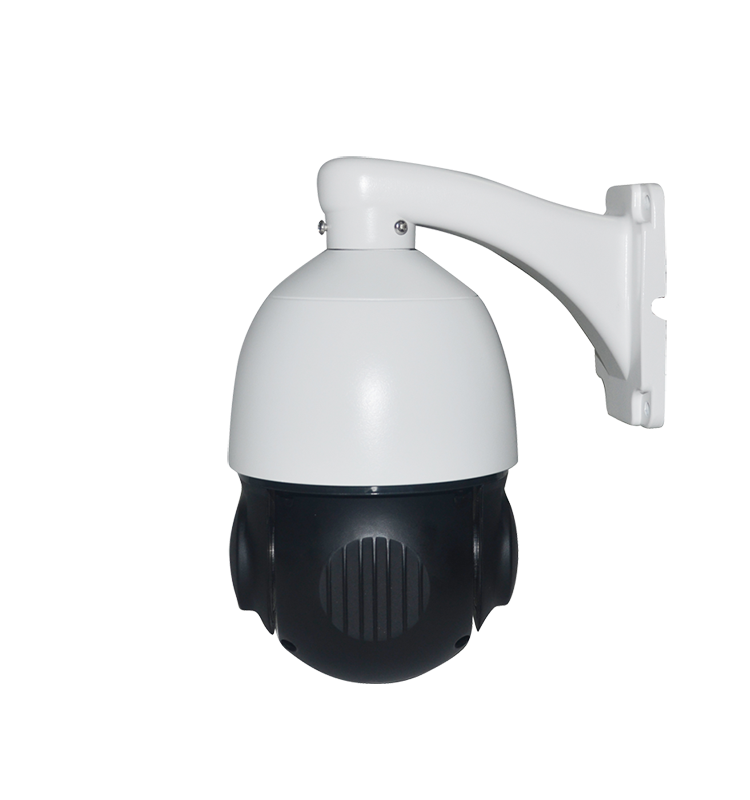

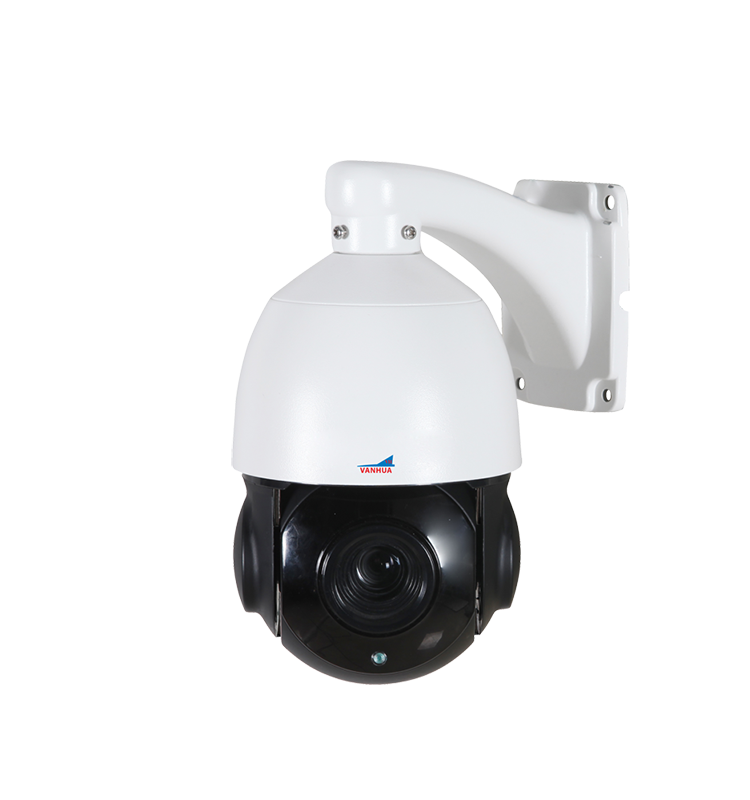

H. 265 high speed 4 inch PTZ IR 80M
| Model No. | VH-NP2020-S03 | VH-NP2020-S03L | VH-NP5020-S03 | VH-NP2036-S03 |
| Camera | ||||
| Soc | HI3516CV300 | HI3516D | HI3516D | HI3516D |
| Sensor | 1/3" CMOS 2MP Sony323 | 1/2.7" CMOS 2MP Sony290 | 1/2.5" CMOS 5MP AR0521 | 1/3" CMOS 2MP Panasonic34229 |
| Output Pixel | 1920x1080/30fps 1920x1080/25fps |
1920x1080/30fps 1920x1080/25fps |
2592x1944/15fps 2592x1944/15fps |
1920x1080/30fps 1920x1080/25fps |
| Lens | 20X f=4.7mm~94mm | 36X 4.6mm~165mm | ||
| BLC | Support | |||
| AGC | Auto/manual | |||
| WB | Auto/manual/indoor/outdoor | |||
| DNR | 2DNR,3DNR | |||
| WDR | DWDR | WDR≥79dB | DWDR | WDR≥79dB |
| S/N Ratio | ≥50dB | |||
| Dome | ||||
| Communication Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |||
| Software Control | IE, CMS, Management Platform | |||
| Mobile View(optional) | Support Windows, iPhone platform smartphone | |||
| Video compression | H.264/H.265/M-JPEG | |||
| Audio compression | G711,PCM | |||
| Rotation Range | Pan: 0°~360° , Tilt: 0°~93° | |||
| rotation speed (optional) | Pan: 0~80°/s , Tilt:0~40°/s | |||
| Auto Flip | Horizontal 180°, Vertical 93° | |||
| Preset Points | 220pcs presets（dwell time 01-60s interval available） | |||
| A-B scan | User programmabel(scan speed 1-64 levels setting available) | |||
| Guard Tours | 3 groups( Max.16 points, dwell time user selectable) | |||
| Operating temperature | -40℃~+60℃ | |||
| Operation menu | English | |||
| Power | DC 12V 3A | |||
| Consumption | ≤25W | |||
| Lightning Protection | Transient voltage 6000V | |||
| Related validation | IP66,CE,FCC,RoHs | |||
| IR parameter | ||||
| Auto Control IR LED | PWM | |||
| IR distance | Up to 80 meters | |||
| LEDs | 6PCS Array 42Mil IR LED |
|||
| Support ambient light detection | IR illumination on 1-9 grades selectable | |||
